Electro-Mech LX116 Baseball Scoreboards

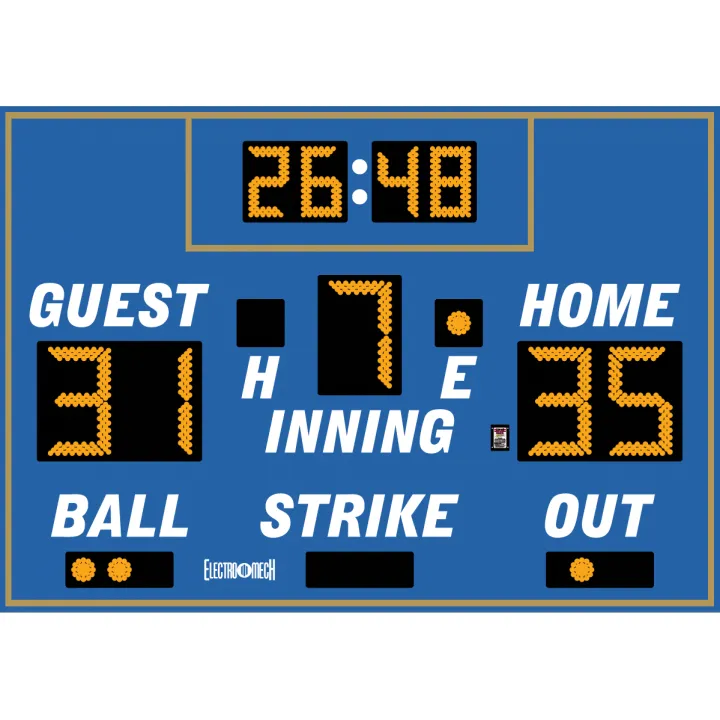

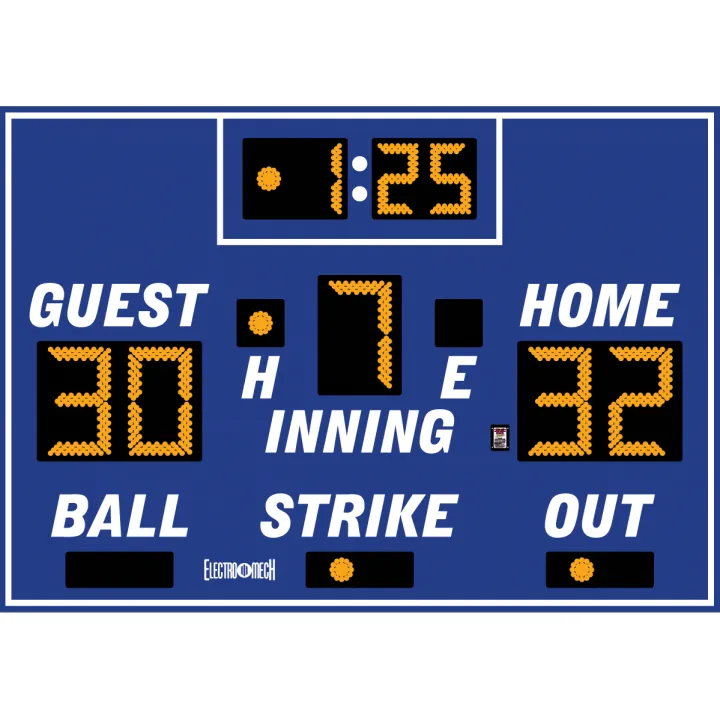

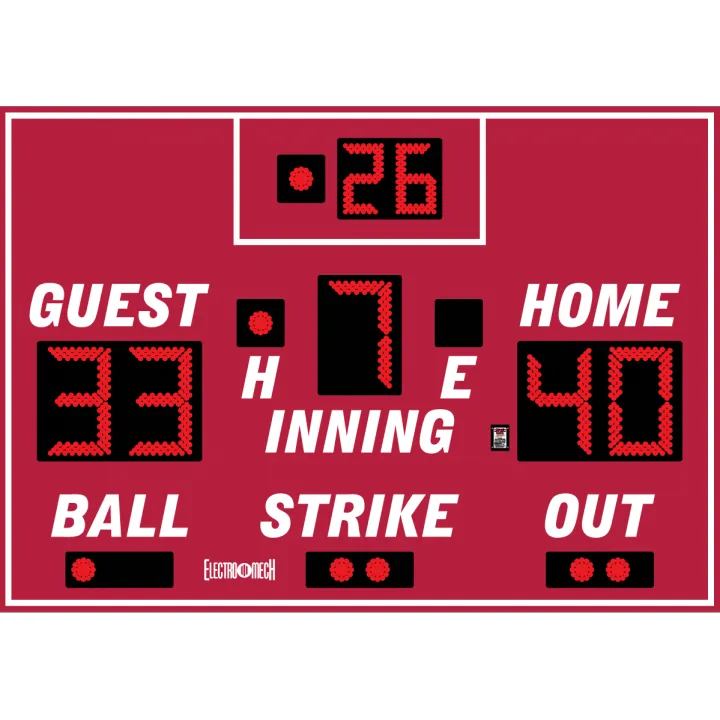

The LX116x series is an expansion of our popular LX1060 Baseball scoreboard design. With customers often requesting the addition of Pitch Count and Timers to the original 10 ft. x 5 ft. scoreboard, we decided to offer an array of standard packages in a single 10 ft. x 7 ft. cabinet. For Pitch Count only, select LX1160. Or combine Pitch Count with a Timer. Or choose the Timer without Pitch Count. All the combinations in this series offer the option to upgrade to Electronic Team Names.

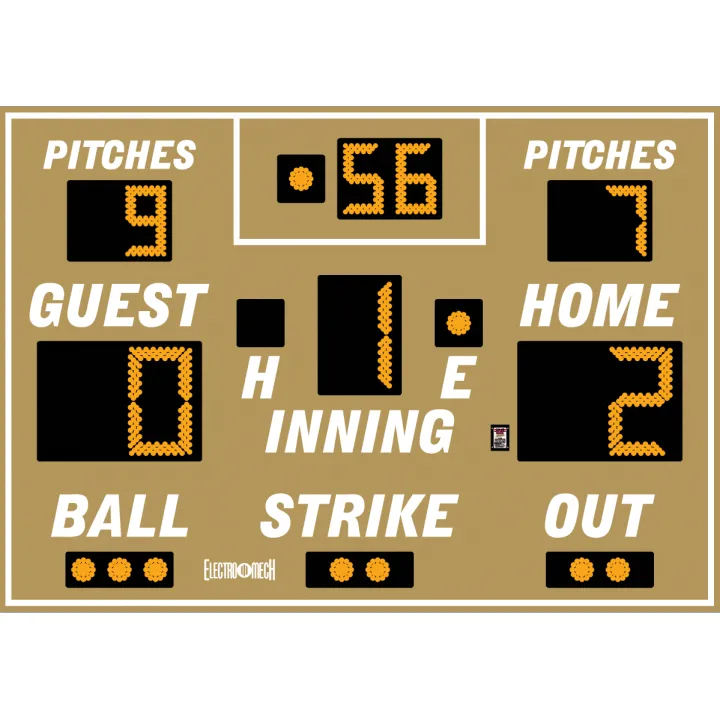

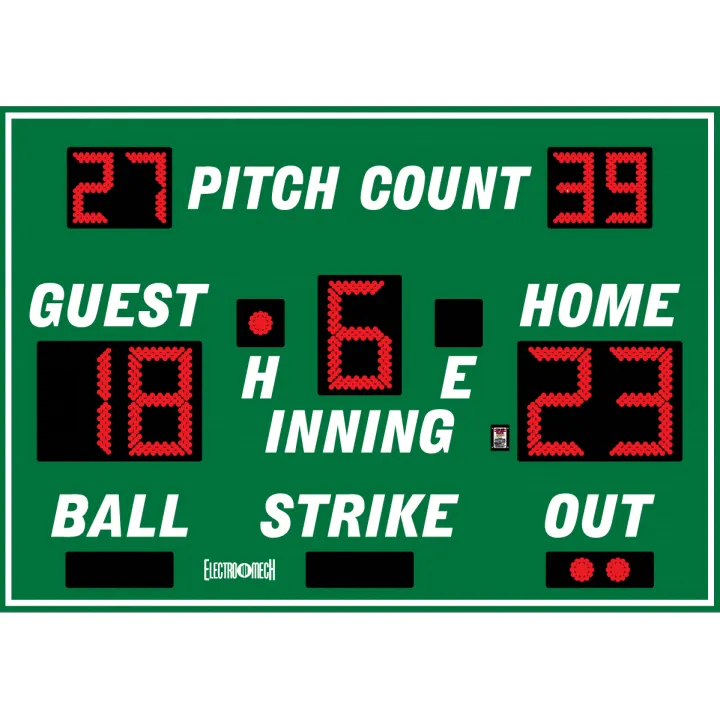

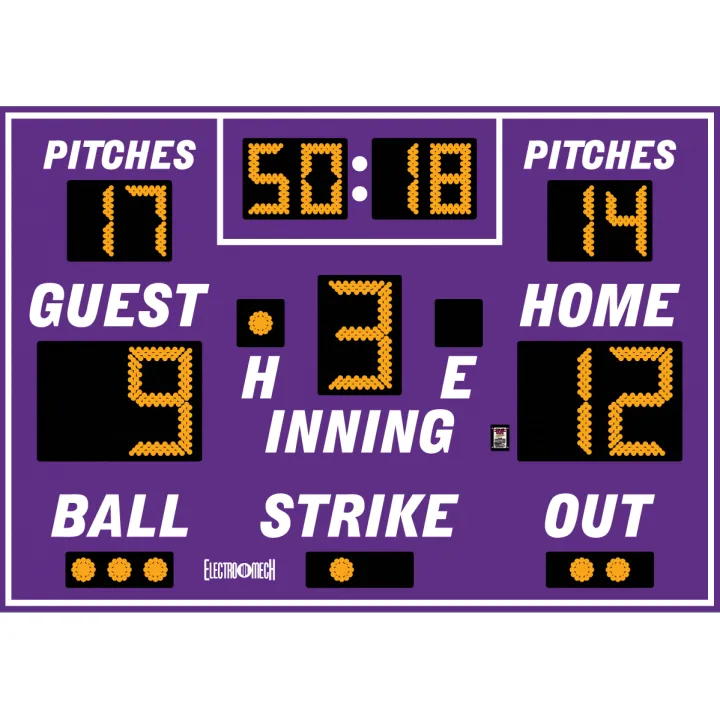

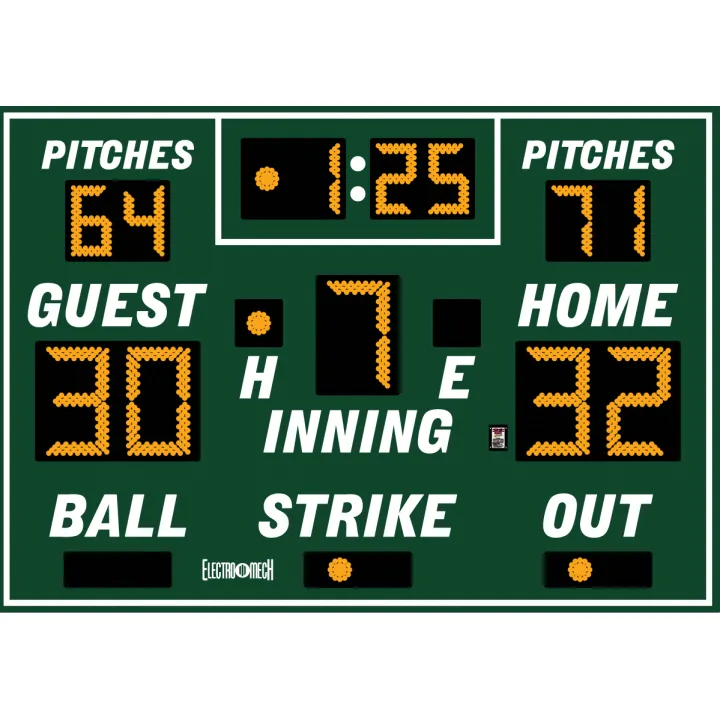

Model LX1160 is the flagship of the series and the first standard Electro-Mech scoreboard model to offer Pitch Counts. This is our "Double Pitch Count" style -- with digits for both the Home and Guest Teams always visible. Our LX16xx and LX17xx series scoreboard include models with a "Single Pitch Count" feature -- meaning the Pitch Count digits alternate between showing Home and Guest Pitch Counts depending on which team is at bat. In either case, the control console keeps track of the totals throughout the game.
Dimensions:10 ft x 7 ft
Weight:220 lbs.
Digit Height:18 in, 11 in
Electrical:120 VAC, 1.4 amps
Standard Equipment & Features
Single cabinet design with heavy-duty extruded aluminum framing
Lightweight, rust free, all-aluminum construction
Mounting hardware for permanent installation on posts without the need for on site fabrication
Automotive-grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Choice of amber or red LED displays
LED display circuit boards conformally coated for outdoor use
Full-sized 37-key control console with LCD display
Fifty programmable brightness levels
Junction box and patch cable for hardwired installations
Five-year limited warranty
Toll-free technical support via phone and online for the life of the product
